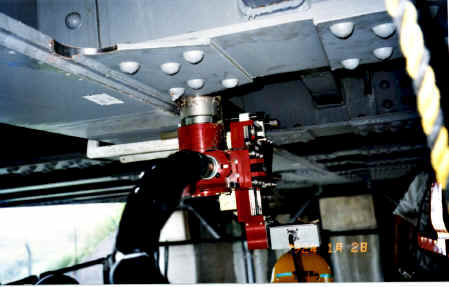

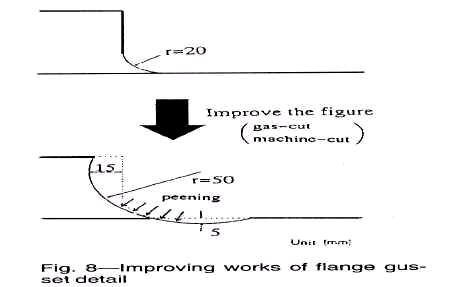

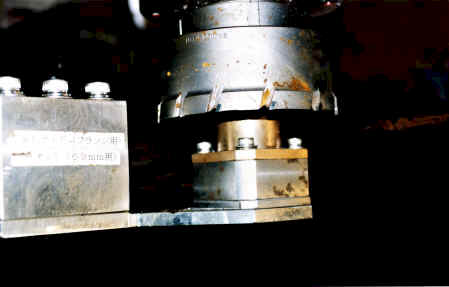

Shinkansen Br. (end of gusset attached to a flange) : Fillet radius enlargement by machine cut †

1.Field of application †

Shinkansen bridges in Japan

2.Circumstances of repair †

From the end of a gusset attached to a flange, fatigue cracks was worried

3.Types of structure †

Steel bridges, Deck or Trough girders, Trough trusses.

4.Details of loading †

220 Shinkansen trains /day,

5.Description fo damage and repair method applied †
